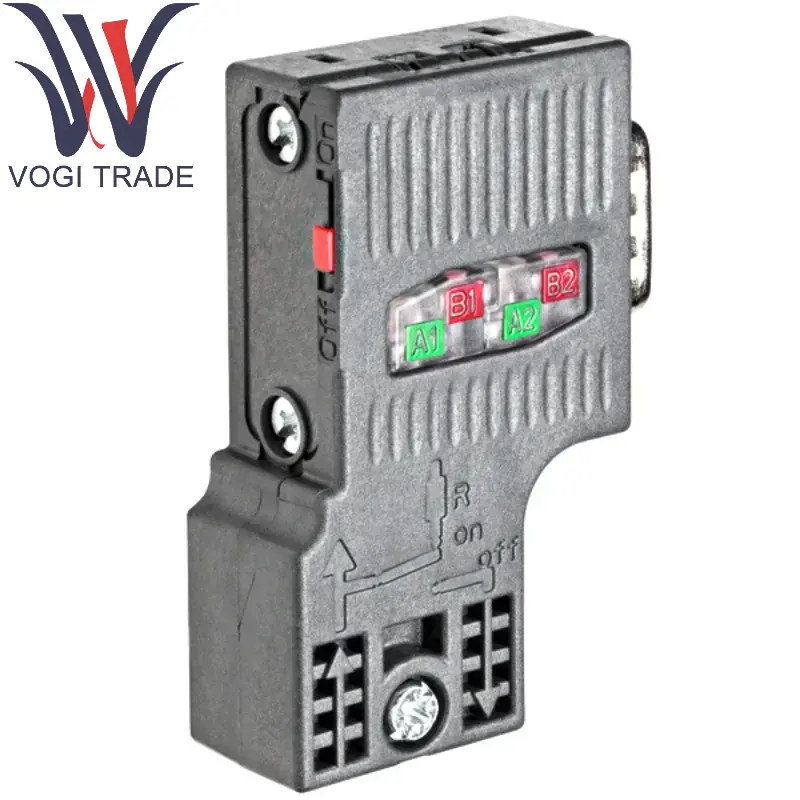

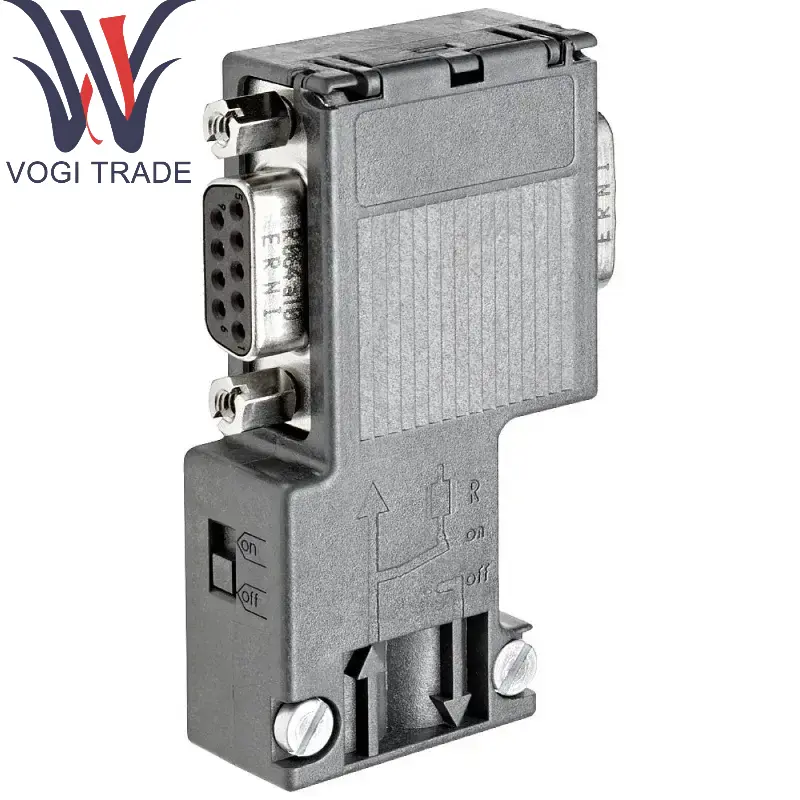

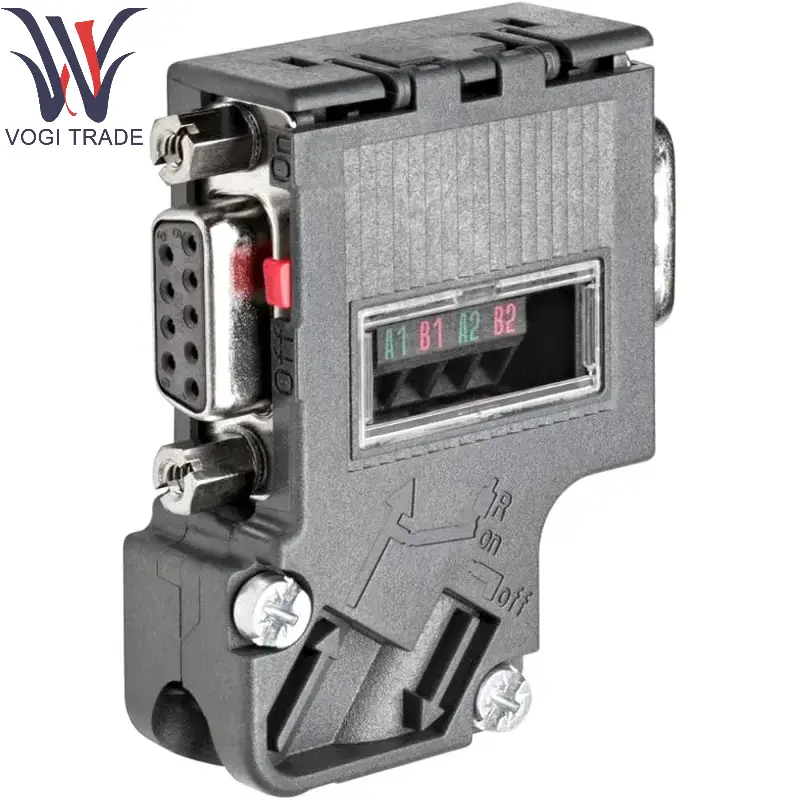

시멘스 6ES7972-0BB42-0XA0

Product Description

Type: Bus Connector

Design:

90° cable outlet: saves space and is suitable for compact installation.

Integrated programming port (PG port):Siemens 6ES7972-0BB42-0XA0 allows programming devices to be connected without stopping the machine, which is convenient for debugging and maintenance.

Purpose:Siemens 6ES7972-0BB42-0XA0 used to connect cables and devices of PROFIBUS DP network.

Product Details

Technical Parameters

Features Specifications

Interface Type PROFIBUS DP (9-pin Sub-D interface)

Cable outlet angle 90° elbow

Data transmission rate supports 9.6 kbps ~ 12 Mbps

Termination resistor can be activated by switch

Protection Class IP20 (indoor use)

Compatibility complies with PROFIBUS IEC 61158/EN 50170

Operating temperature -20°C ~ +60°C

Physical Characteristics

Color: usually black or dark gray.

Material: flame-retardant plastic housing, metal shielding layer.

Electrical characteristics

Maximum current: 500 mA .

Application areas

Industrial automation:

PROFIBUS DP interface for connecting SIMATIC S7-300/400/1500 PLC.

Network connection for ET 200 distributed I/O modules, frequency converters, HMI and other devices.

Key scenarios:

Production lines that require online programming or diagnosis.

Space-constrained electrical cabinet installation.

Installation and use instructions

Wiring method:

Connect PROFIBUS cable via 9-pin Sub-D interface.

Terminal resistance must be activated for terminal equipment (switch set to "ON").

Note:

Terminal resistance must be used at both ends of the network.

Avoid cable bending radius that is too small.

Advantages and features

Reliability: Siemens original design to ensure PROFIBUS network stability.

Convenience: Integrated PG port supports fast commissioning and reduces downtime.

Compatibility: Widely supports Siemens and third-party PROFIBUS devices.
